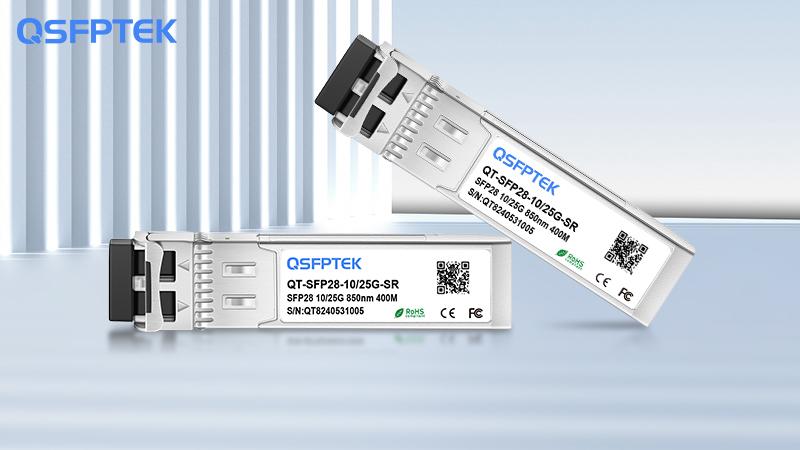

How 10/25G Dual-Rate Optical Modules Improve Port Utilisation in ToR and MoR Architectures

As data centre networks evolve toward higher-density deployments and faster east-west traffic patterns, achieving efficient port utilisation across both Top-of-Rack (ToR) and Middle-of-Row (MoR) architectures has become a core design objective. The introduction of 10/25G dual-rate optical modules offers a practical and technically robust solution for mixed-generation server environments, enabling operators to reduce underutilised ports, simplify upgrade paths, and increase cabinet-level efficiency.

Challenges of Port Utilisation in ToR Networks

ToR architectures typically place a 48-port 10/25G switch at the top of each rack. While this design provides predictable cable management and short server-to-switch distances, it also introduces a frequent issue: port fragmentation. When a rack includes a combination of legacy 10G servers and newer 25G NICs, network teams often face a dilemma, reserve ports for future 25G upgrades or deploy them at 10G speeds temporarily. Either approach can result in unused 25G-capable interfaces, inefficient port planning, and unnecessarily increased ToR switch counts across the data hall. Dual-rate modules resolve this by allowing each port to dynamically operate at either 10G or 25G based on link negotiation, ensuring that switch capacity is always utilised regardless of server generation.

Improving MoR Efficiency Through Adaptive Link Speeds

MoR architectures centralise network access for multiple racks, typically through high-port-density 10/25G switches. The challenge here is even more significant: because server populations across racks vary widely in refresh cycles, MoR switches often host a long-term mixture of 10G and 25G endpoints. Without dual-rate optics, operators must pre-allocate 10G and 25G port blocks, creating rigid boundaries and contributing to stranded capacity.

10/25G dual-rate modules eliminate this constraint by enabling rate-flexible connectivity on every optical port. As a result, rack rows with inconsistent server refresh schedules can gradually transition from 10G to 25G without redesigning the MoR switch tier or altering the fibre plant. This leads to consistently higher port occupancy and smoother multi-rack scaling.

Enhancing Cabinet Density and Reducing Idle Optical Interfaces

A major benefit of dual-rate optical modules lies in their ability to absorb variable workload demands while enabling higher server-per-cabinet ratios. In a ToR environment, operators can deploy dense 25G-ready switches without worrying about early port idling when most servers still operate at 10G. Over time, as 25G NICs are introduced, the same modules automatically operate at higher speed, effectively extending the lifecycle of the optical layer.

In MoR designs, rate adaptivity allows operators to fully utilise high-port-count leaf switches, minimising the number of cabinets that require additional access switches. This contributes directly to space savings, power efficiency, and a lower total cost of ownership.

A Predictable and Low-Disruption Upgrade Path

One of the strongest technical advantages of 10/25G dual-rate modules is their compatibility with IEEE 802.3by / 802.3ba specifications, ensuring interoperable performance with modern ToR/MoR switching silicon and 10GBASE-SR/LR and 25GBASE-SR/LR optics. This standard-based approach allows network operators to upgrade servers or switch ports independently, avoiding large-scale cutovers and eliminating the need to stock separate 10G and 25G transceiver inventories.

In practice, the operator gains a flexible, demand-driven upgrade path where each rack row, cabinet, or server cluster can evolve organically. This ensures consistent SLA performance while preserving both bandwidth headroom and operational simplicity.

Conclusion

10/25G dual-rate optical modules significantly enhance port utilisation across both ToR and MoR architectures by introducing a flexible, standards-based mechanism for supporting mixed server speeds. Their ability to negotiate rate per link, maintain high-density deployment efficiency, and provide a seamless upgrade path makes them essential in modern data centre environments undergoing gradual transitions from 10G to 25G. As data centres continue scaling laterally and vertically, dual-rate optics will remain a foundational tool for achieving predictable performance and optimal switch-port economics.
